Vortex Speaker Kits

Discussion in 'Home Theater Speaker Kit Information' started by Erich H, Jul 20, 2019.

  1. Drumdoctor

    Drumdoctor Just joined the party

    Joined:
    Feb 8, 2015
    Messages:
    19
    Likes Received:
    2
    Location:
    Canton, MI
    You can substitute SVS-Erse 3.5mH 18 AWG coil from Parts Express. It's physically larger, more expensive, and the end will hang over the board, but it should work.
    Try Madisound for the capacitor?

  2. Eli H.

    Eli H. Member

    Joined:
    Jun 7, 2021
    Messages:
    10
    Likes Received:
    4
    awesome thank you

  3. Matt Grant

    Matt Grant Administrator

    Joined:
    Jun 5, 2012
    Messages:
    834
    Likes Received:
    240
    Location:
    Millbrook, IL

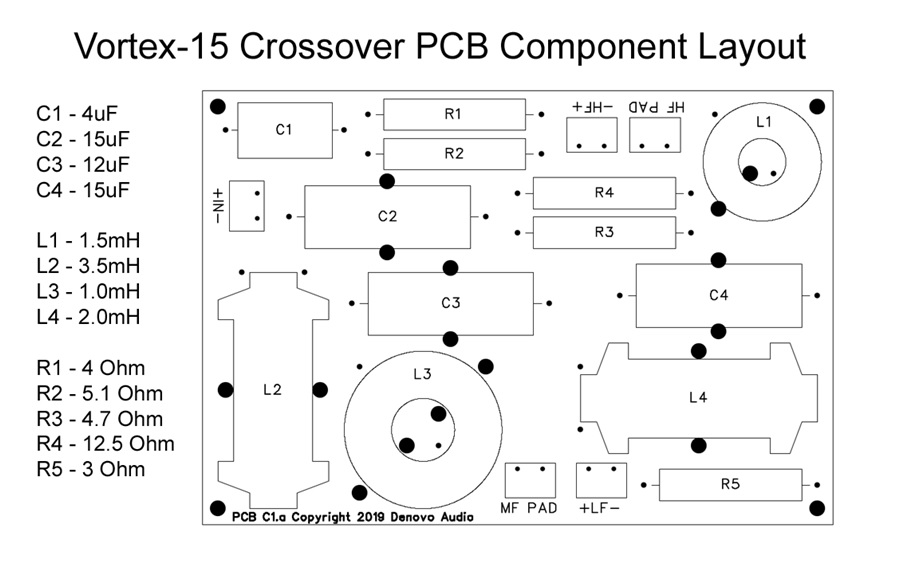

    You can use a pair of 2.0uF caps in parallel to replace the 4.0uF.

    I also posted on AVS forum that I am willing to order some of the larger inductor values and unwind them down to 3.5mH / 2.0mH if there is enough demand. No extra charge, just shipping.

    Paul Carlucci likes this.
  4. Wags

    Wags Member

    Joined:
    Oct 9, 2020
    Messages:
    8
    Likes Received:
    3
    Do you think there is any issue with making the cabinets into a mild Frustum shape like the Zu Soul?

    Also, after looking at the price of crossover components, it seems like a similar price to go with a MIniDSP for the crossovers. Are there any specific drawbacks with a digital crossover for this type of design?

    Thanks to all! I'm excited to build!

  5. EndersShadow

    EndersShadow Member

    Joined:
    Jul 22, 2019
    Messages:
    14
    Likes Received:
    2
    Yes. You’d have to convert what the analog crossover is doing to the digital one and I’m pretty sure that’s not a super straightforward thing to do.

  6. hamjam

    hamjam New Member

    Joined:
    Jul 13, 2021
    Messages:
    4
    Likes Received:
    2
    There is a lot of baffle step correction built into the crossover, even if you bypass the 1 mH inductor. A trapezoid with a 17" width at the driver center might be similar to a 17" wide rectangle, but I don't know. To do either a frustum or DSP, I think you would have to be prepared to make measurements and adjustments.

  7. Rich

    Rich Active Member

    Joined:
    Jun 17, 2019
    Messages:
    44
    Likes Received:
    26

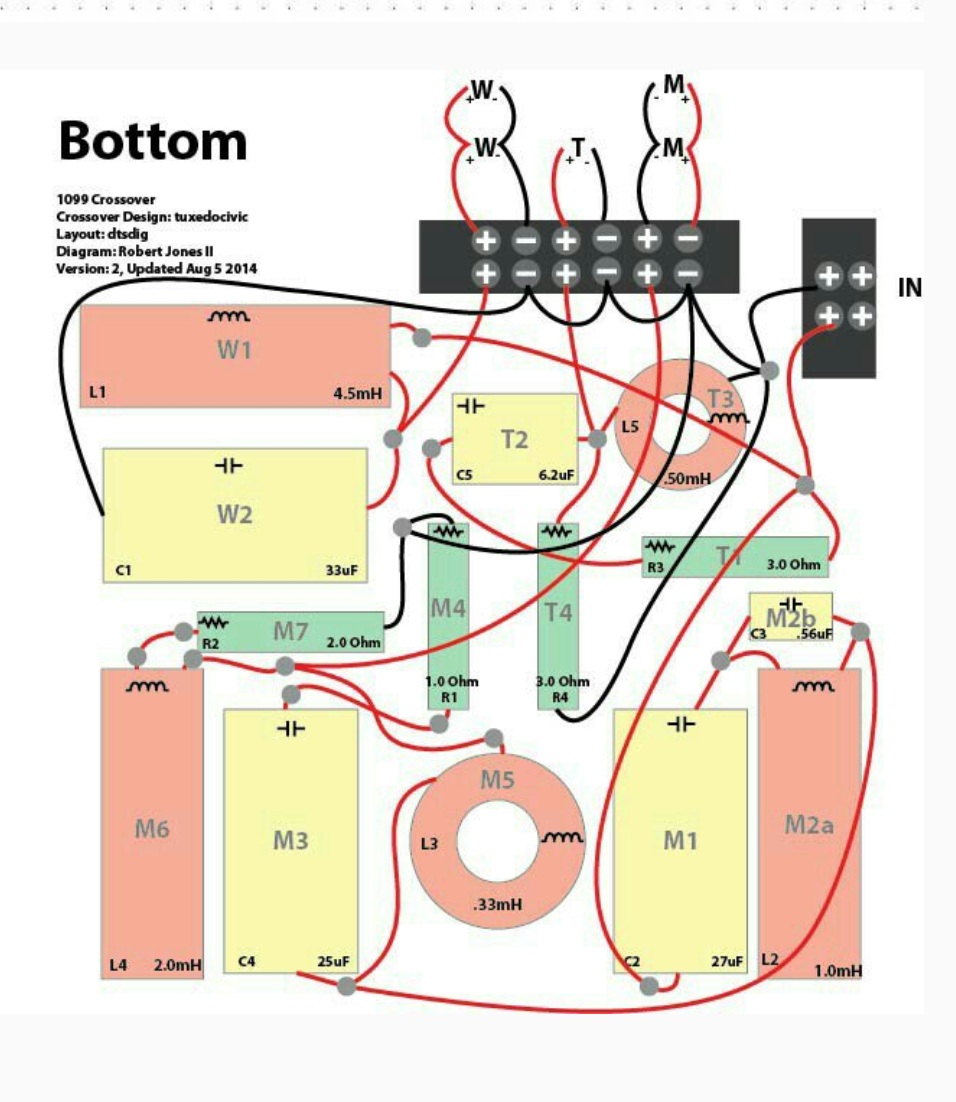

    Hello Matt/Erich - I'm still waiting on the next round of Vortex 15 sales. Is it possible to upload a more simplified diagram similar to the attached for crossover instructions. Thank you sir!
    Screen Shot 2021-08-13 at 8.48.09 AM.png

  8. Skoonky

    Skoonky Active Member

    Joined:
    Jul 13, 2021
    Messages:
    32
    Likes Received:
    3
    I thought there would be no more Vortex 15 sales?

    If I remember Matt mentioned he would be selling out of the inventory for the 15 and creating a kit for the Vortex 12"

    Last edited: Aug 13, 2021
  9. matt996

    matt996 Member

    Joined:
    Jun 30, 2021
    Messages:
    18
    Likes Received:
    2
    I recall reading that there would be more Vortex-15s once he receives the next order of compression drivers.

  10. Skoonky

    Skoonky Active Member

    Joined:
    Jul 13, 2021
    Messages:
    32
    Likes Received:
    3
    I hope! Maybe it was just the current stock he had that he was trying to get rid of.

  11. Brinkman

    Brinkman Just joined the party

    Joined:
    Jan 30, 2013
    Messages:
    58
    Likes Received:
    5
    It’s a damn shame the bulk of these drivers were sold as closeouts. These are seriously great drivers and I cannot wait to build a cabinet once the cost of birch plywood returns to normal

    MDuyck1292 likes this.
  12. MDuyck1292

    MDuyck1292 Active Member

    Joined:
    Mar 7, 2021
    Messages:
    36
    Likes Received:
    15
    Location:
    Soldotna, AK
    I`m with you on the cost of birch. Here in AK it`s running $114 per 4`x8` sheet for 3/4". I just built a second row riser and an ottoman for my HT room, each with an enclosure for an Eminence 21" driver. Eye opening for sure.

  13. grew

    grew Member

    Joined:
    Dec 8, 2020
    Messages:
    14
    Likes Received:
    9
    ummmm

    wow.....

    wow

    just finished dry fitting the center channel and gave it a run


    wow

  14. Skoonky

    Skoonky Active Member

    Joined:
    Jul 13, 2021
    Messages:
    32
    Likes Received:
    3
    Tell us more??

  15. grew

    grew Member

    Joined:
    Dec 8, 2020
    Messages:
    14
    Likes Received:
    9
    still giving it a run through its paces.The 3 15 Vortex are replacing a PSB C60 and 2 PSB T65's.

    Its not even close to compare them. I have a horrific room where the theater has its left side open to a 800 sq foot basement. That said I still am blown away by the difference and am extremely excited to build the L&R speakers to get a true sense. Just the center channel is a whole new level.

    I have a better measurement mic coming but i did run a sweep and it looked pretty good for someone who has almost no clue what they are doing. For some reason i found that the receiver was running a 3db roll off above 3k hz. So I will run the test again with the new mic and the roll off turned off and put up some pictures.

    I'm a terrible carpenter and an exponentially worse painter. So be nice.

    Last edited: Aug 31, 2021
  16. grew

    grew Member

    Joined:
    Dec 8, 2020
    Messages:
    14
    Likes Received:
    9

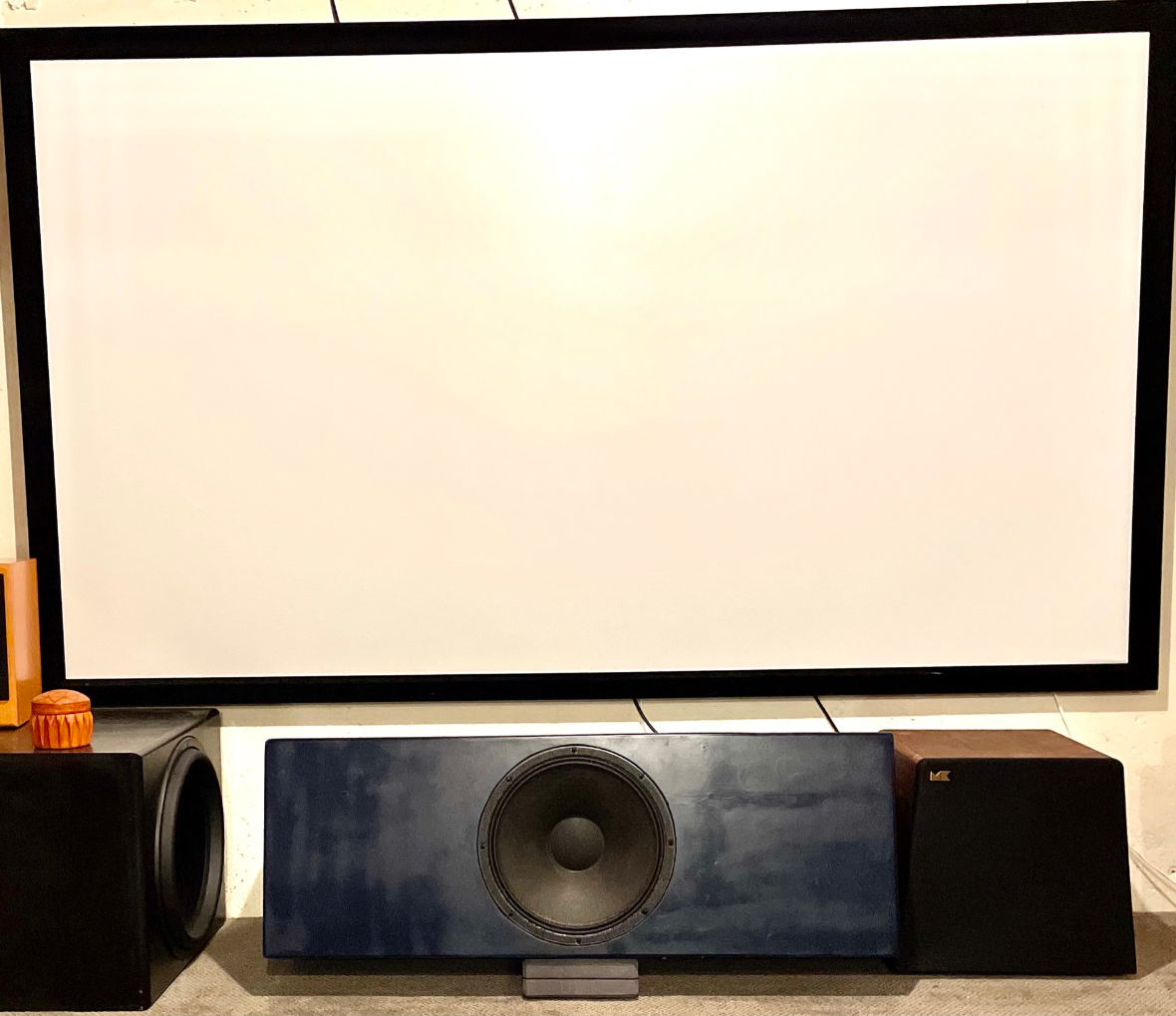

    Not happy with the paint or finishing but i had to get it in there. On to the L&R!
    Vortex 15.png

    Last edited: Sep 27, 2021
    MDuyck1292, EarlK and matt996 like this.
  17. grew

    grew Member

    Joined:
    Dec 8, 2020
    Messages:
    14
    Likes Received:
    9

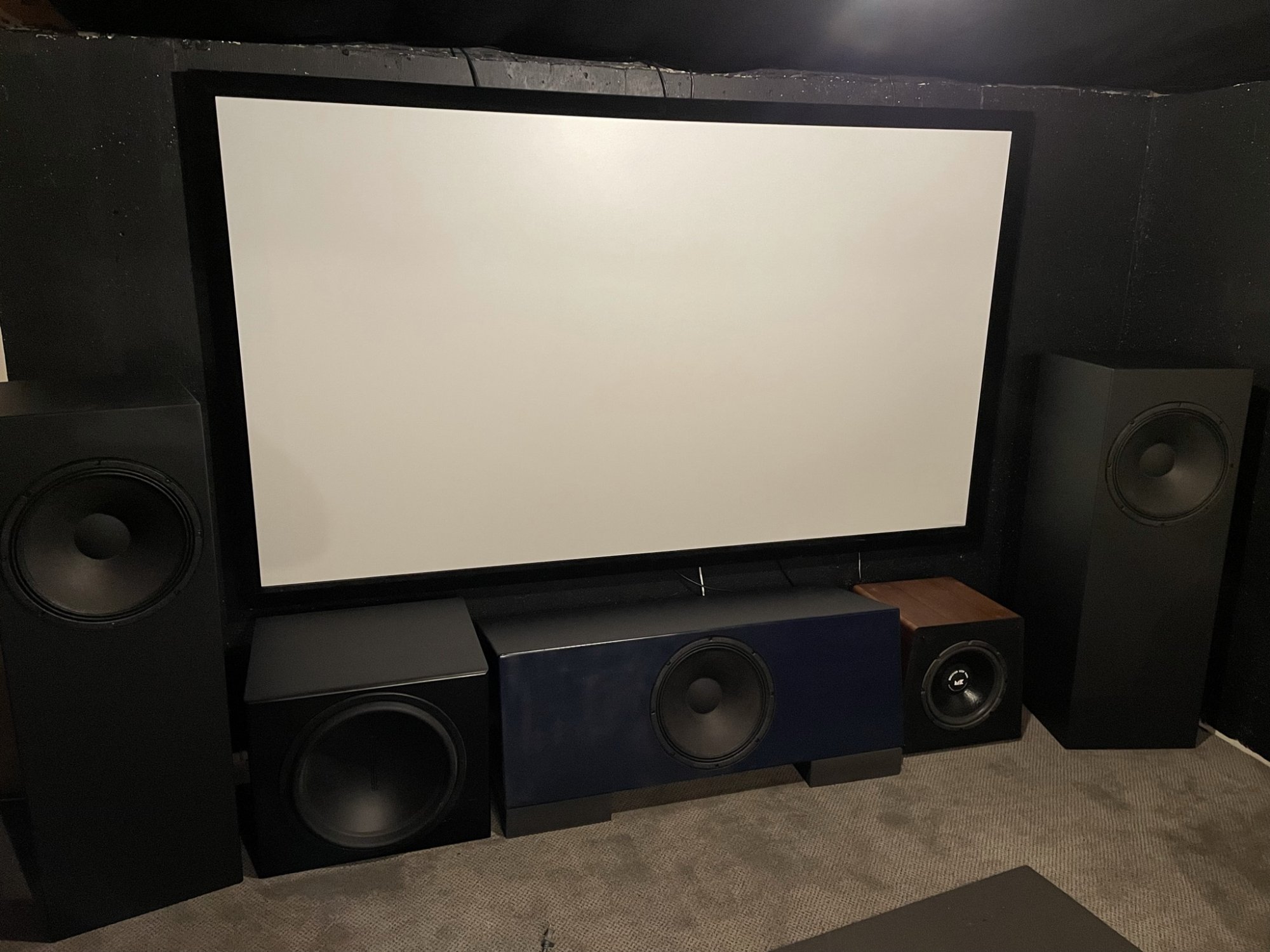

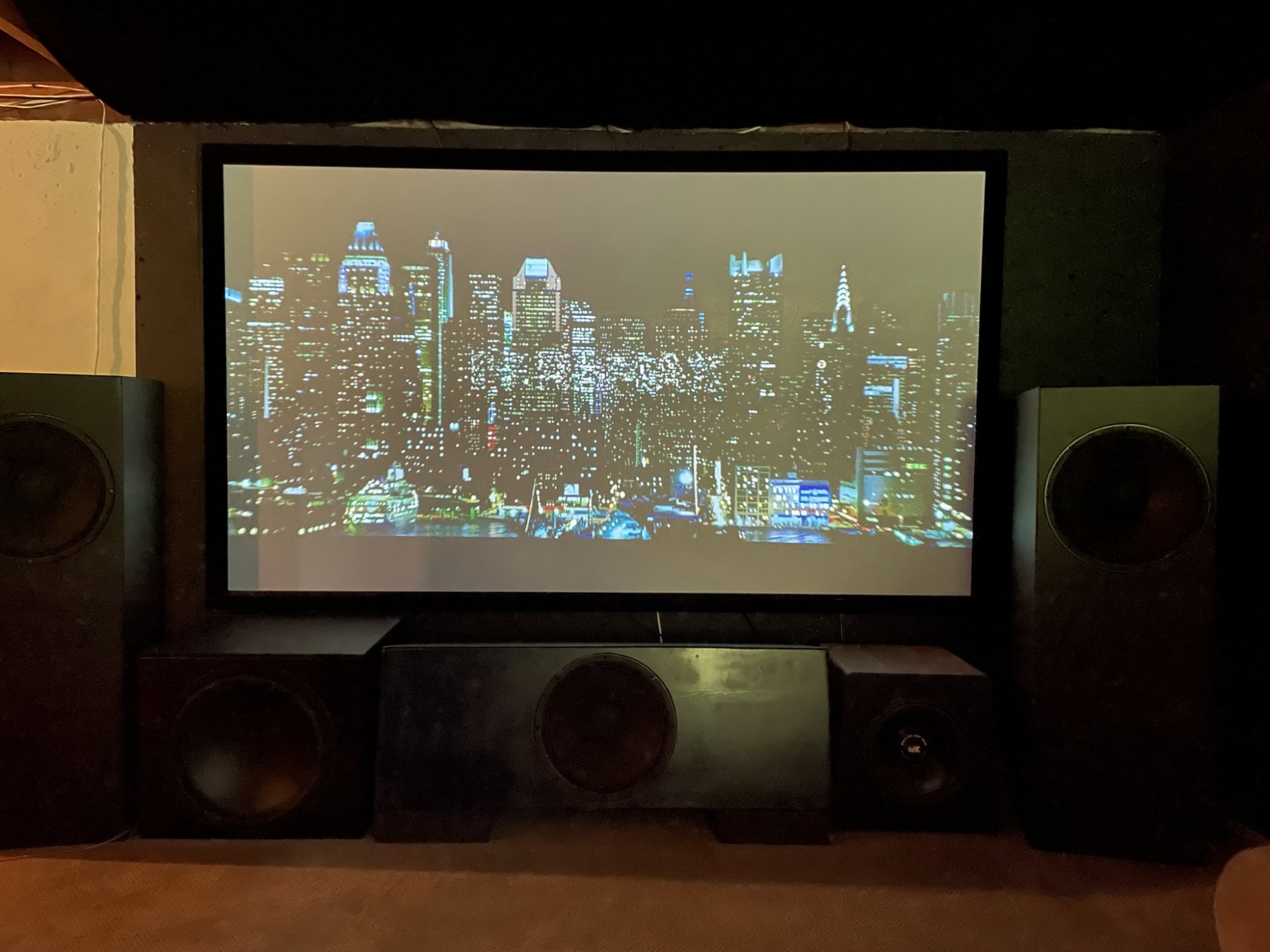

    And done! I'm speechless. still have to re-paint the center channel but i'm probably going to put that off for a while

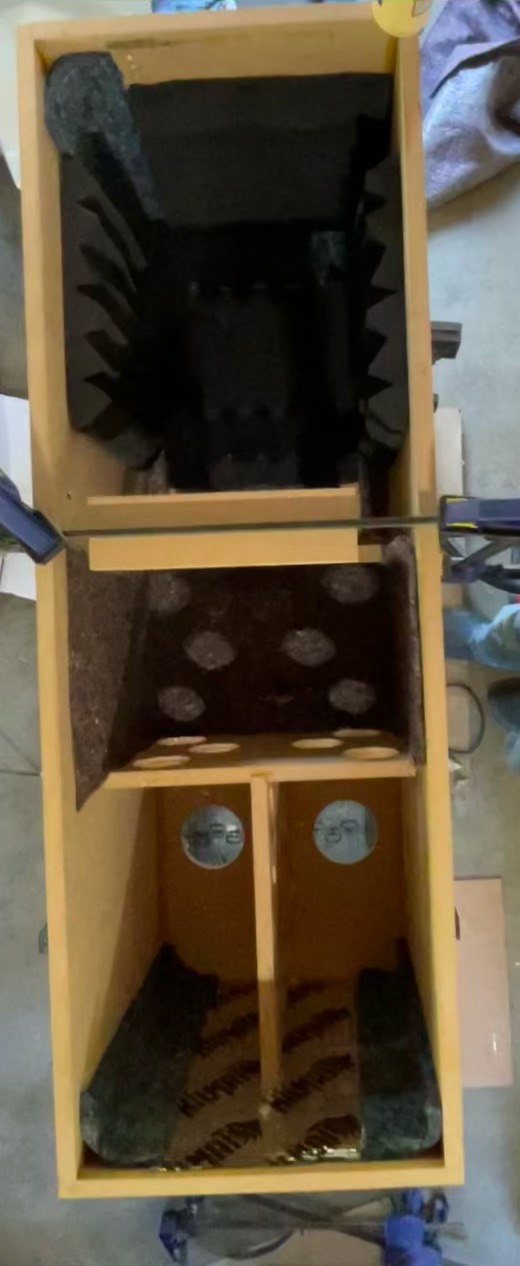

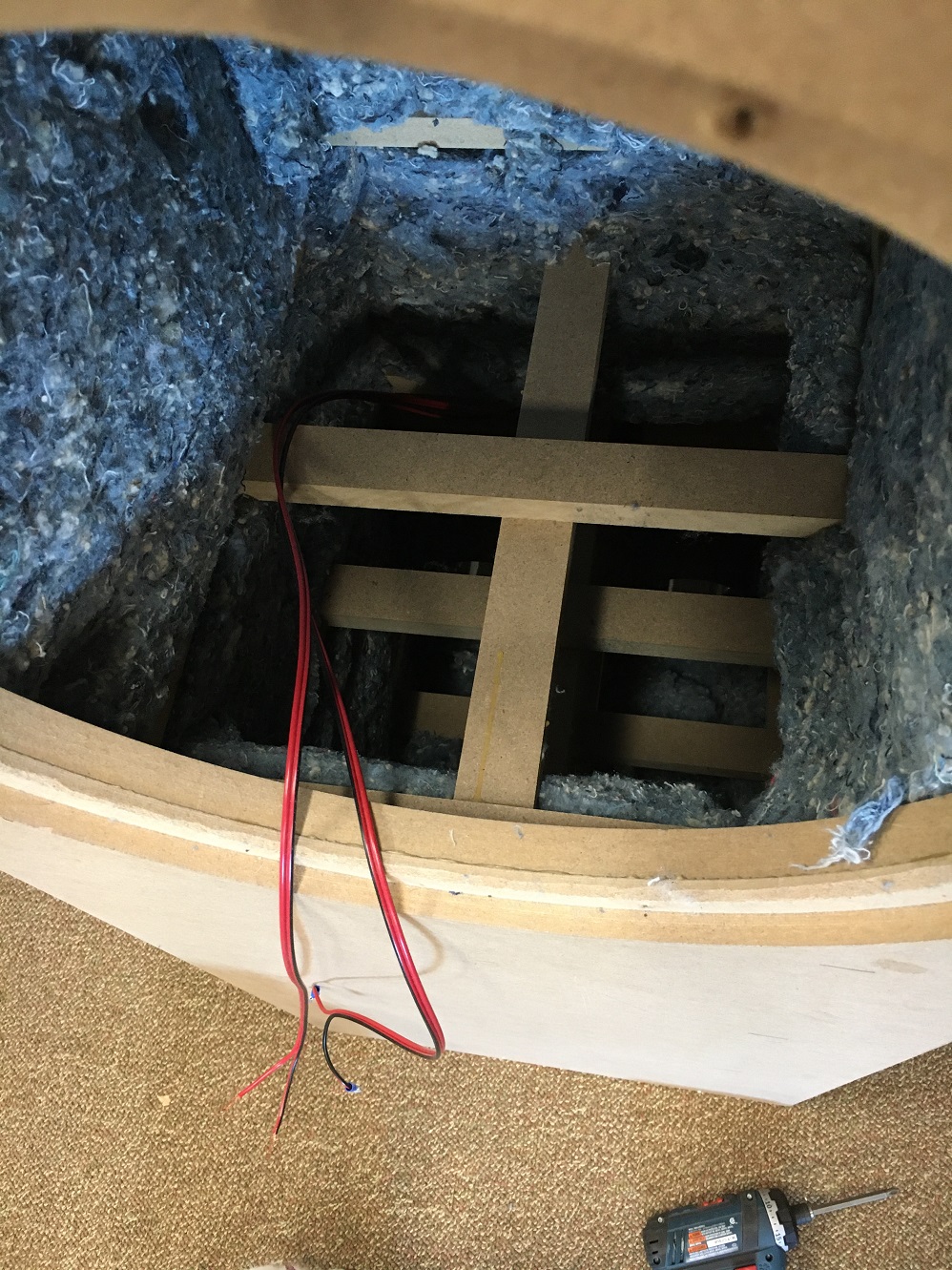

    Bracing and first part of padding/dampening. I didn't take very many pictures sorry.

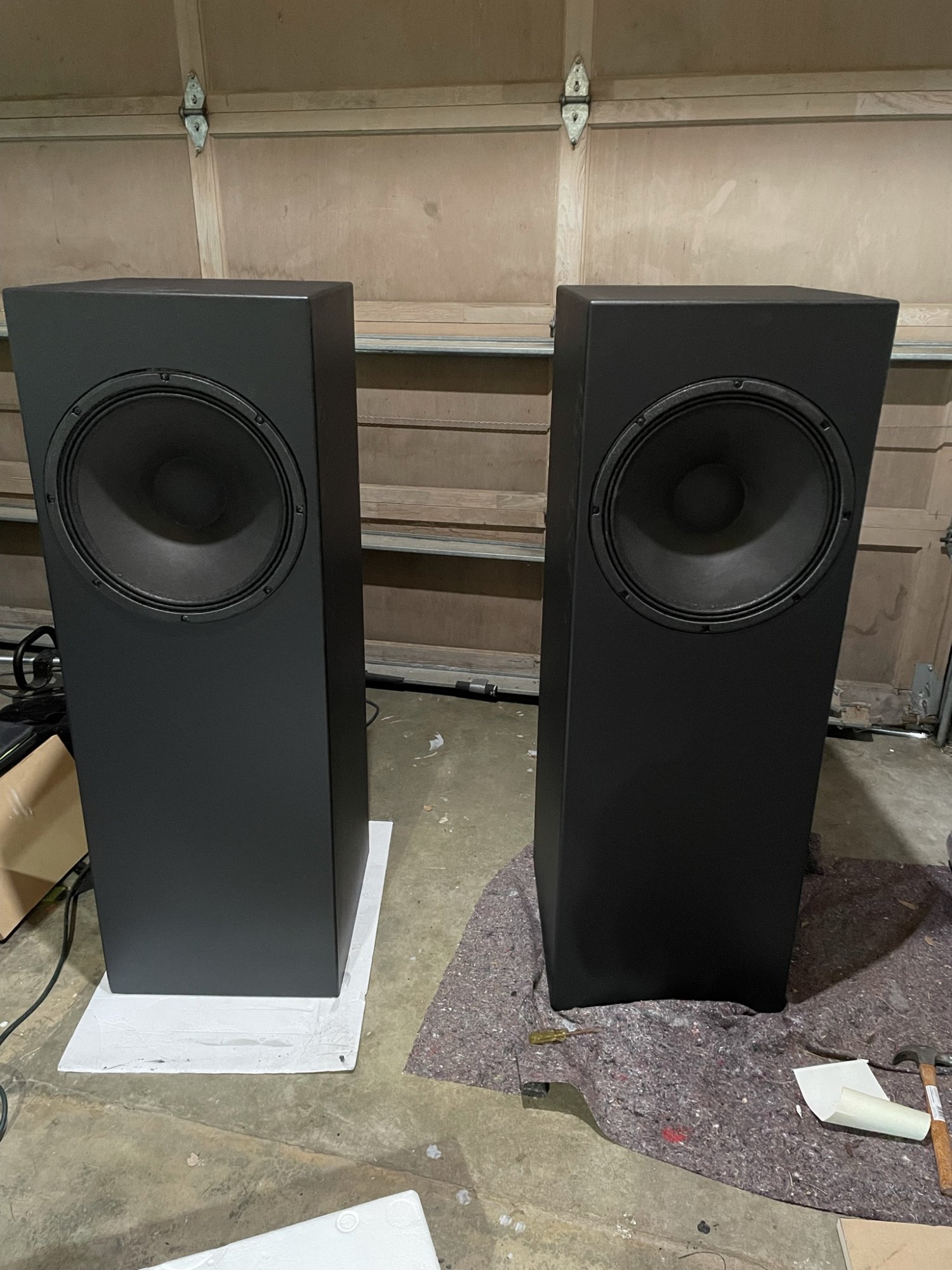

    And all done


    Attached Files:

    Last edited: Sep 29, 2021
  18. Rich

    Rich Active Member

    Joined:
    Jun 17, 2019
    Messages:
    44
    Likes Received:
    26
    Erich/Matt - Any updates when the Vortex will go back on sale?

    Braden likes this.
  19. Braden

    Braden Member

    Joined:
    Oct 13, 2021
    Messages:
    6
    Likes Received:
    1
    Looks like the 15's are all but gone sadly. Hopefully Erich will put some 12's back on the site at some point

  20. jeremyland

    jeremyland Just joined the party

    Joined:
    Sep 27, 2014
    Messages:
    6
    Likes Received:
    0
    There is 6 vortex 15’s on the site right now.

  21. Wags

    Wags Member

    Joined:
    Oct 9, 2020
    Messages:
    8
    Likes Received:
    3
    I was cruising along in my build and remembered that I forgot to order damping material.

    For a pair of cabinets (17" x 16" x 42"") would 5 lbs of Acustuff be enough? How thick is the material you lined the walls with and would be your material of choice if the denim is out of stock?

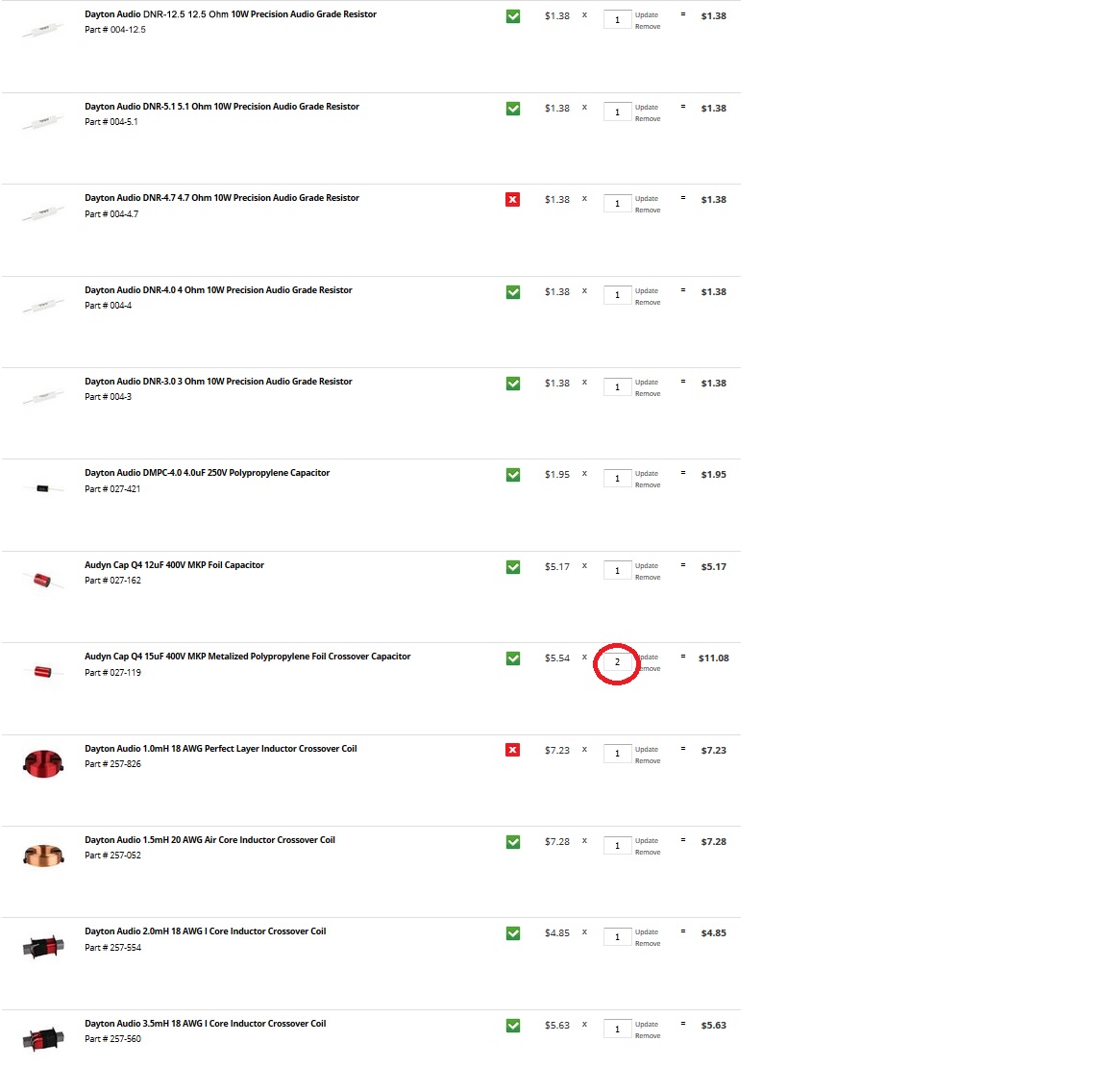

    For anyone still looking for crossover parts, check out meniscus audio! They shipped fast and had everything parts express didn't.

    Last edited: Oct 19, 2021
  22. Matt Grant

    Matt Grant Administrator

    Joined:
    Jun 5, 2012
    Messages:
    834
    Likes Received:
    240
    Location:
    Millbrook, IL

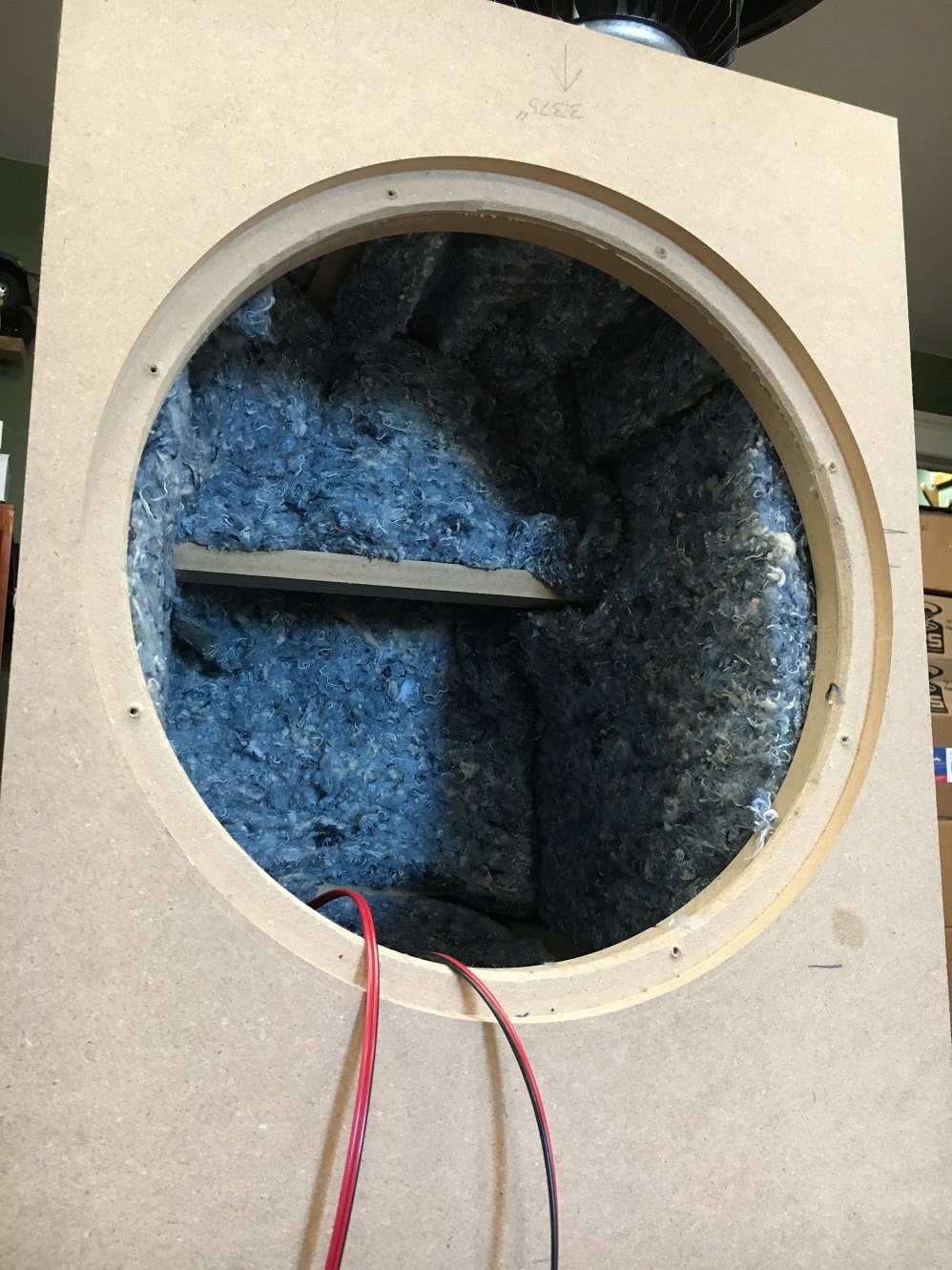

    I'd use acoustic foam, fiberglass or mineral wool, you probably want about 1.5 - 2" thick material.

    5lbs should be enough for two cabinets.

  23. Ron Grzywacz

    Ron Grzywacz New Member

    Joined:
    Feb 25, 2018
    Messages:
    4
    Likes Received:
    0
    It looks like the originals are back in stock, earlier than expected. I had ordered them, and then ordered the Erse a day later. I just cancelled the Erse, as the originals shipped.

    Last edited: Oct 25, 2021
  24. m4bgringo

    m4bgringo Well-Known Member

    Joined:
    Sep 23, 2021
    Messages:
    58
    Likes Received:
    35
    Location:
    New Jersey
    I have a set of Vortex-15's to build and now I am looking at how to design the cabinets.
    I would prefer a slot port in the front, but those measurements are confusing me.
    One is for a slot that is 1.5" high by 4" long (I assume deep).
    The other is for a slot that is 2" high by 6" long.
    Both of them full-width of the front, 15.5".
    To me those two ports would give a different tuning frequency.
    For either case I am assuming a piece of MDF inside the cabinet above the front cutout to form the top of the port, and the bottom of the cabinet serves as the bottom of the port?
    Or should I put my big-buy pants on and use the software that others are using and design my own since the TS params are on here and I can chose the tuning frequency?

  25. grew

    grew Member

    Joined:
    Dec 8, 2020
    Messages:
    14
    Likes Received:
    9
    Another statement to the efficiency of these speakers. I have an onkyo RZ50 on order (December ship date). I got a 4k Projector and found out my Old pioneer elite receiver won't pass the 4k signal. So i went from 120watts all channels driven (It was a digital Amplifier) to probably 50 watts ACD with a Costco Denon S760H.

    Really not having any trouble with dynamics or sound. I'm really blown away and second guessing the RZ50 purchase.
